Home » Products » Lathe Machine » All Geared Lathe Machine

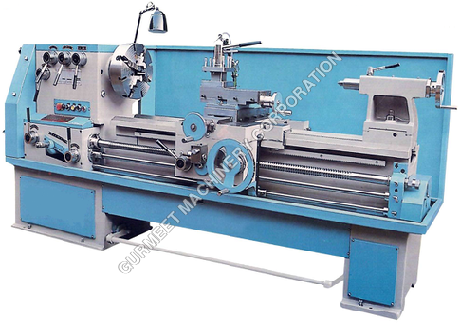

All Geared Lathe Machine

All Geared Lathe Machine
All Geared Lathe Machine
Send Inquiry
Product Code : 09
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
  • Price
  • 205000 INR/Unit
Product Specifications
  • Product Type
  • Lathe Machine, Other
  • Material
  • Metal
  • Voltage
  • 220-380 Volt (v)
  • Feature
  • High Efficiency, High Performance
  • Color
  • Blue
Product Description

All Geared Lathe Machine

Our company is highly renowned for manufacturing and exporting the best range of All Geared Lathe Machine which includes Extra Heavy Duty All Geared Lathe Machine, Heavy Duty Geared Lathe Machine. Widely used in engineering and wood working industry for processing, cutting and shaping materials, these machines are offered to clients in varied models and specifications for meeting their diverse requirements. Our entire range of lathe machines is incorporated with advanced working mechanism which ensures hassle free performance.


Features:

  • These lathe machines are user friendly in operations
  • These machines require less maintenance
  • Best known among clients for their robust built

Technical Specification:-

Capacity

GMC 250

GMC 300

GMC 400

GMC 450

GMC 500

Bed Width

325 mm

375 mm

450 mm

500 mm

550 mm

Center Height

250 mm

300 mm

400 mm

450 mm

500 mm

Swing over bed

500 mm

600 mm

800 mm

900 mm

1000 mm

Swing in gap

700 mm

850 mm

1100 mm

1300 mm

1400 mm

Swing over cross slide

300 mm

325 mm

530 mm

620 mm

710 mm

Admit between center

1000 To 1500

1000 To 2500

1200 To 3400

1500 To 3000

1500 To 4200

Bed Type

Foot type

Foot type

Foot type

Planer type

Planer type

Head Stock






Head stock type

Geared Driven

Geared Driven

Geared Driven

Geared Driven

Geared Driven

No. of Spindle speed

8 No.

8 No.

8 No.

8 No.

8 No.

Spindle Bore

54 mm

65 mm

90 mm

90 mm

100 mm

Spindle Taper

MT 4

MT 4

MT 5

MT 5

MT 5

Range of spindle

45 to 900

45 to 900

45 to 750

45 to 400

45 to 450

Thread & Feeds






Thread Capable

As per thread chart

As per thread chart

As per thread chart

As per thread chart

As per thread chart

Metric Thread

1 - 14

1 - 14

1 - 14

1 - 14

1 - 14

Range of long. feed

0.2 to 3.0 mm

0.2 to 3.0 mm

0.2 to 3.0 mm

0.2 to 3.0 mm

0.2 to 3.0 mm

Range of traverse feed

0.03 to 0.50 mm

0.033 to 0.50 mm

0.033 to 0.50 mm

0.033 to 0.50 mm

0.033 to 0.50 mm

Lead Screw

4 TPI

4 TPI

4 TPI

2 TPI

2 TPI

Gear Box

Full Norton type

Full Norton type

Full Norton type

Full Norton type

Full Norton type

No. of feeds

30

30

30

30

30

Tail Stock






Tail Stock Taper

MT 3

MT 4

MT 5

MT 5

MT 5

4 jaw chuck

250 mm

300 mm

400 mm

450 mm

600 mm

Electrical Panel make

Siemens make

Siemens make

Siemens make

Siemens make

Siemens make

Electrical Motor

3 H.P

3 H.P

5 H.P

7.5 H.P

10 H.P

RPM

1440

1440

1440

1440

1440


Standard Accessories:

  • Study rest
  • Follow rest
  • Motor plate
  • Face plate
  • Tool kit
  • Dead center
  • V-Belt
  • Electrical
Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Telegraphic Transfer (T/T), Cheque
  • Supply Ability
  • 1 Unit Per Day
  • Delivery Time
  • 15-20 Days
  • Packaging Details
  • Wooden Box
  • Main Export Market(s)
  • South America, Eastern Europe, Western Europe, Australia, Africa, Middle East, North America, Central America, Asia
  • Main Domestic Market
  • All India
