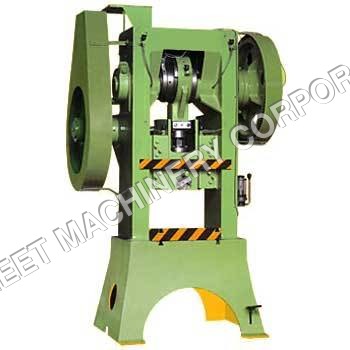

H type Power Press

H type Power Press
H type Power Press
Send Inquiry
Product Code : 13
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
  • Price
  • 105000 INR/Unit
Product Specifications
  • Product Type
  • H type Power Press
  • Color
  • Green
  • Usage
  • For Pressing
  • Material
  • Metal
  • Voltage
  • 220-380 Volt (v)
Product Description

With rich market knowledge as well as experience we have been able to emerge as a trusted manufacturer and exporter of Power Press Machine H Type. It is known for high production capacity and is accurately aligned with ram & tables for superior precision press operation. The key function of power press is sheet metal forming through transfer forces on the job. At our sound production unit, we manufacture this machine using high quality mild steel and cast iron. Power Press Machine H Type is equipped with gun metal bushes and ensures continuous production & accuracy.

Features:

  • Mechanical device
  • Pneumatic clutch
  • Stroke counter
  • Easy operate
  • Gun metal bush

Technical Specification:-

Machine Size MM

10 Ton

20 Ton

30 Ton

50 Ton

75 Ton

100 Ton

150 Ton

Bed Size

305 x 355

355 x 410

410 x 457

457 x 510

510 x 560

560 x 610

610 x 660

Distance Bed to Ram

255

280

305

330

355

406

457

Bed Bore

100

115

127

152

178

203

228

Gear Dia.

457

560

610

660

760

863

965

Fly wheel Dia

520

660

711

840

915

1016

1067

Main Shaft Dia

75

90

100

120

140

152

180

Back Shaft Dia

56

63

70

76

90

100

120

Stroke of Ram

56

63

75

90

100

120

127

Stroke Per Min.

75 No.

65 No.

60 No.

60 No.

55 No.

50 No.

45 No.

Hole in Ram

28

32

35

38

45

50

56

Stroke P.M.

70

60

50

45

40

35

30

Electrical Motor

1.5 HP

2 HP

3 HP

5 HP

5 HP

7.5 HP

10 HP

R.P.M

1440

1440

1440

1440

1440

1440

1440


Trade Information
  • Payment Terms
  • Cheque, Cash in Advance (CID), Cash Advance (CA), Telegraphic Transfer (T/T)
  • Supply Ability
  • 1 Unit Per Day
  • Delivery Time
  • 15-20 Days
  • Packaging Details
  • Wooden Box
  • Main Export Market(s)
  • Australia, Western Europe, Eastern Europe, South America, Africa, Middle East, North America, Central America, Asia
  • Main Domestic Market
  • All India
