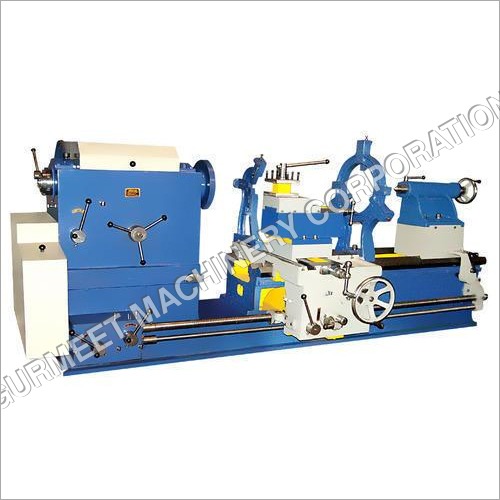

Heavy Duty Lathe Machine

Heavy Duty Lathe Machine
Heavy Duty Lathe Machine
Send Inquiry
Product Code : 08
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
  • Price
  • 210000 INR/Unit
Product Specifications
  • Product Type
  • Heavy Duty Lathe Machine, Other
  • Material
  • Metal
  • Voltage
  • 200-380 Volt (v)
  • Feature
  • High Performance
  • Color
  • Blue
Product Description

Heavy Duty Lathe Machine

We are holding rich experience in the domain of manufacturing and supplying Heavy Duty Lathe Machine. Our dexterous workforce uses quality grade mild steel and cast iron to manufacture this machine. The machine uses linear relative motion between the work piece and a single-point cutting tool to machine a linear tool path. Our machine can remove a tremendous amount of material in one pass with high accuracy. We make available this Lathe Machine for clients in different technical specifications as per their requirements

Features:

  • Spindle Made from alloy steel hardened & ground
  • Lubrication system
  • Easy to operate
  • Hi-Cut

Technical Specification:-

Model

GMC 12

GMC 16

GMC 20

GMC 24

Length of Bed

3600 mm

4800 mm

6000 mm

7200 mm

Width of Bed

500 mm

550 mm

600 mm

650 mm

Center Height

450 mm

500 mm

550 mm

600 mm

Spindle Bore

100 mm

100 mm

100 mm

100 mm

Swing Over Bed

1000 mm

1100 mm

1200 mm

1225 mm

Swing In Gap

1300 mm

1400 mm

1600 mm

1700 mm

Swing over slide

650 mm

760 mm

820 mm

910 mm

Admit Between Center

2300 mm

3200 mm

4500 mm

5200 mm

Bed Type

Planer Type

Planer Type

Planer Type

Planer Type

Moser Taper

MT 4

MT 5

MT 5

MT 6

Spindle Speeds

6 No.

6 No.

6 No.

6 No.

Lead Screw Pitch

2 TPI

2 TPI

2 TPI

2 TPI

Thread Capable

As per thread chart

As per thread chart

As per thread chart

As per thread chart

Electrical Motor

3 H.P

5 H.P

7.5 H.P

7.5 H.P

R.P.M

1440

1440

1440

1440



Standard Accessories:

  • Study rest
  • Follow rest
  • Motor plate
  • Face plate
  • Tool kit
  • Dead center
Trade Information
  • Payment Terms
  • Cash in Advance (CID), Cheque, Cash Advance (CA), Telegraphic Transfer (T/T)
  • Supply Ability
  • 1 Unit Per Day
  • Delivery Time
  • 15-20 Days
  • Packaging Details
  • Wooden Box
  • Main Export Market(s)
  • Eastern Europe, South America, Western Europe, Australia, Africa, Middle East, North America, Central America, Asia
  • Main Domestic Market
  • All India
