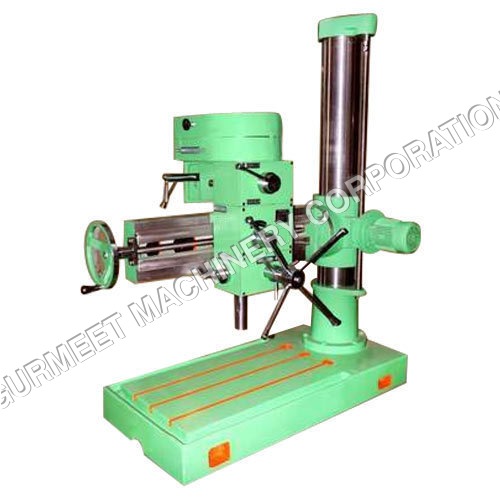

Radial Drill Machine

Radial Drill Machine
Radial Drill Machine
Send Inquiry
Product Code : 02
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
  • Price
  • 55000 INR/Unit
Product Specifications
  • Product Type
  • Radial Drill Machine
  • Material
  • Metal
  • Computerized
  • No
  • Voltage
  • 220-380 Volt (v)
  • Power Source
  • Electric
  • Color
  • Green
Product Description

Radial Drill Machine

Machine is used in metal fabrication industries as it offers precision to bore holes in different sizes on tough metals. Holding a highly reputed and trusted market standing, we are engaged in manufacturing and supplying Radial Drill Machine. Our machine can make holes or drill on metal sheet, bars and panels with ease. We manufacture this machine with the help of our diligent workforce using high quality mild steel and cast iron. Radial Drill Machine has a large geared head which can be moved along with an arm that radiates from the machine's column.


Features:

  • High working efficiency
  • Easy to operate
  • Longer working life


Technical Specification


Model

GMC 32

GMC 40

GMC 50

GMC 65

GMC 65

Drill Head






Drill capacity

32 mm

40 mm

50 mm

60 mm

75 mm

Drill Depth

140 mm

200 mm

250 mm

250 mm

325 mm

Taper Spindle Nose

MT -3

MT 4

MT- 4

MT- 5

MT- 5

No. of Spindle Speed

6 No.

6 No.

6 No.

6 No.

6 No.

Spindle speeds range

45-750 RPM

45-750 RPM

45-650 RPM

45-550 RPM

45-550 RPM

No of Spindle feed

2 (0.1 to 0.2)

3 (0.1 to 0.2)

3 (0.1 to 0.2)

3 (0.1 to 0.2)

6 (0.125 to 125)

Drill Power

1.5 KW

1.5 Kw

2.2 Kw

3.7 Kw

5.5 Kw

Capacity






Drill Radius Max.

700 mm

900 mm

1100 mm

1300 mm

1700 mm

Drill Radius Min.

300 mm

325 mm

425 mm

425 mm

500 mm

Drill Head Traverse

300 mm

500 mm

600 mm

750 mm

1200 mm

Diameter of Column sleeve

177 mm

230 mm

250 mm

310 mm

355 mm

Arm Elevator Motor

0.75 Kw

0.75 Kw

1 Kw

1.5 Kw

2 Kw

Dimension of Base






Distance Base Plate to Spindle Max.

800 mm

950 mm

1200 mm

1400 mm

1650 mm

Distance Base Plate to Spindle Min.

225 mm

225 mm

225 mm

300 mm

400 mm

Dimensions of Base Plate

1000 x 630 x 125

1350 x 700 x 170

1500 x 750 x 170

1700 x 850 x 190

2600 x 1150 x 250

Weight Approx.

1000 K.G

1300 K.G

1700 K.G

2300 K.G

4500 K.G


Standard Accessories:

  • Box Table
  • Electric Motor
  • V-Belts
  • Limit Switches
  • Electrical Control Panel
Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Telegraphic Transfer (T/T), Cheque
  • Supply Ability
  • 1 Unit Per Day
  • Delivery Time
  • 15-20 Days
  • Packaging Details
  • Wooden Box
  • Main Export Market(s)
  • Africa, Middle East, North America, Central America, Asia
  • Main Domestic Market
  • All India
