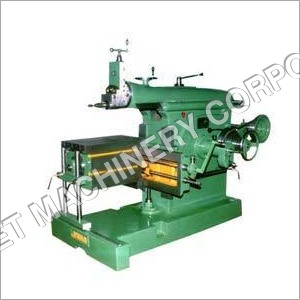

Shaper Machine

Shaper Machine
Shaper Machine
Send Inquiry
Product Code : 10
Brand Name : GMC
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
  • Price
  • 65000 INR/Unit
Product Specifications
  • Condition
  • New
  • Product Type
  • Shaper Machine
  • Material
  • Metal
  • Computerized
  • No
  • Voltage
  • 220-380 Volt (v)
  • Color
  • Green
Product Description

Shaper Machine

Since our inception in this industry, we have been engaged in manufacturing and exporting an excellent range of Shaping Machine. Our wide stock also includes Heavy Duty Shaping Machine, Light Duty Shaping Machine and Metal Shaping Machine. We wisely manufacture these machines in strict tandem with the industry standards using best quality materials and components. Extensively used for shaping metals and other materials, these machines are sternly inspected for their functioning on standard parameters before the final dispatch in market.

Features:

  • These machines ensure precise shaping of materials
  • These have high tensile and load bearing strength
  • Acclaimed for their user friendly control panels
  • Easy operate
  • Low Maintenance

Technical Specification:-

Machine Size (MM)

300 MM

450 MM

600 MM

750 MM

900 MM

Length of Ram Stroke

305

457

610

762

915

Length of Ram

660

990

1219

1378

1740

Length & Width of Ram Bearing

660 x 178

762 x 267

914 x 279

1040 x 279

1190 x 390

Max & Minimum Distance from Table to Ram

257 x 41

407 x 89

457 x 89

508 x 114

521 x 140

Table






Working Surface of Table

305 x 228

407 x 292

483 x 330

610 x 362

457 x 915

Max. Table Travel-Horizontal

419

508

610

762

870

Max Table Travel-Vertical

140

330

375

432

390

Angular Movement of Table

160L x 60R

160L x 60R

160Lx60R

160L x 60R

160L x 60R

Tool Head






Maximum Size of Tool Shank Accommodated

16 x 22

32 x 16

51 x 21

51 x 21

38 x 21

Max. vertical Travel of Tool Slide

140

150

150

150

200

Max. trivial of Tool Head

160L x 60R

160L x 60R

160L x 60R

160L x 60R

160L x 60R

Speed & Feed






No. of speeds

4 No.

4 No.

4 No.

4 No.

4 No.

Range of ram Speeds
(Stroke Per Minute)

30, 60, 90

17, 25, 50,75

12, 24 48 72

10, 24, 45, 70

12, 25, 40, 67

Range of Tool Head Feed

Hand Feed

Hand Feed

Hand Feed

Hand Feed

Hand Feed

Electrical






Electrical Motor

1 HP

2 HP

3 HP

5 HP

5 HP

RPM

1440

1440

1440

1440

1440



Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Telegraphic Transfer (T/T), Cheque
  • Supply Ability
  • 1 Unit Per Day
  • Delivery Time
  • 15-20 Days
  • Packaging Details
  • Wooden box
  • Main Export Market(s)
  • Western Europe, South America, Australia, Eastern Europe, Africa, Middle East, North America, Central America, Asia
  • Main Domestic Market
  • All India
