Universal Milling Machine

Universal Milling Machine
Universal Milling Machine
Send Inquiry
Product Code : 04
Brand Name : GMC
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
  • Price
  • 150000 INR/Unit
Product Specifications
  • Product Type
  • Universal Milling Machine
  • General Use
  • For Milling Parts
  • Weight (kg)
  • 40-80 Kilograms (kg)
  • Voltage
  • 220-440 Volt (v)
  • Feature
  • High Efficiency, High Performance
  • Color
  • Blue, Other
Product Description

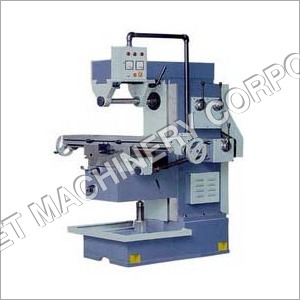

Universal Milling Machine

We are counted among the reputed business entities, engaged in manufacturing and supplying Universal Milling Machine. This machine has spindles and cutters mounted on a horizontal arbor above an X-Y table. Best quality mild steel and cast iron are used to manufacture this machine. Our offered machine allows for the rapid removal of material from the work piece. Universal Milling Machine can smoothly handle single piece jobs easily, hence highly used in large and small machine repair shops, production operations and tool & die shops.

Features:

  • Easy installation
  • Alloy steel main spindle
  • Dual control of spindle speeds
  • Longer working life

Technical Specification:-

Machine Size (MM)

GMC 0A No.

GMC 1 No.

GMC 1.5 No.

GMC 2 No.

GMC 3 No.

Table






Working Surface Table

825 x 175

1050 x 250

1150 x 250

1300 x 275

1500 x 300

No. of T- Slots

3

3

3

3

3

Size of T- Slots

12

12

12

16

16

Longitudinal Travel (X)

375

500

550

650

700

Cross Travel (Y)

125

175

200

275

325

Vertical Travel (Z)

250

300

400

500

675

Swivel table

45°

45°

45°

45°

45°

Spindle






Spindle Speed

6 No.

6 No.

9 No.

9 No.

9 No.

Range of Speed rpm

45 - 500

45 - 550

40 - 675

40 - 675

40 - 675

Table Rotation Side to Side

45° x 45°

45° x 45°

45° x 45°

45° x 45°

45° x 45°

Arbor Diameter

25

25

25

25

25

Taper in Spindle

MT-2

MT-2

MT-3

MT-4

MT-4

Feed






No. of Feed ( longitudinal )

3

3

3

3

3

Cutting Capacity

8 DP

8 DP

6 DP

6 DP

6 DP

Electrical Motor






Motor Required

1 HP

1 HP

2 HP

3 HP

5 HP

R.P.M

1440

1440

1440

1440

1440

Coolant Pump Motor

0.1 HP

0.1 HP

0.1 HP

0.1 HP

0.1 HP



Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Telegraphic Transfer (T/T), Cheque
  • Supply Ability
  • 1 Unit Per Day
  • Delivery Time
  • 15-20 Days
  • Packaging Details
  • Wooden Box
  • Main Export Market(s)
  • South America, Australia, Eastern Europe, Western Europe, Africa, Middle East, North America, Central America, Asia
  • Main Domestic Market
  • All India
